Services We Provide

CNC Precision Turning
CNC Precision Milling
Precision Metal Stamping
Jig & Fixture Fabrication
O.E.M Machining

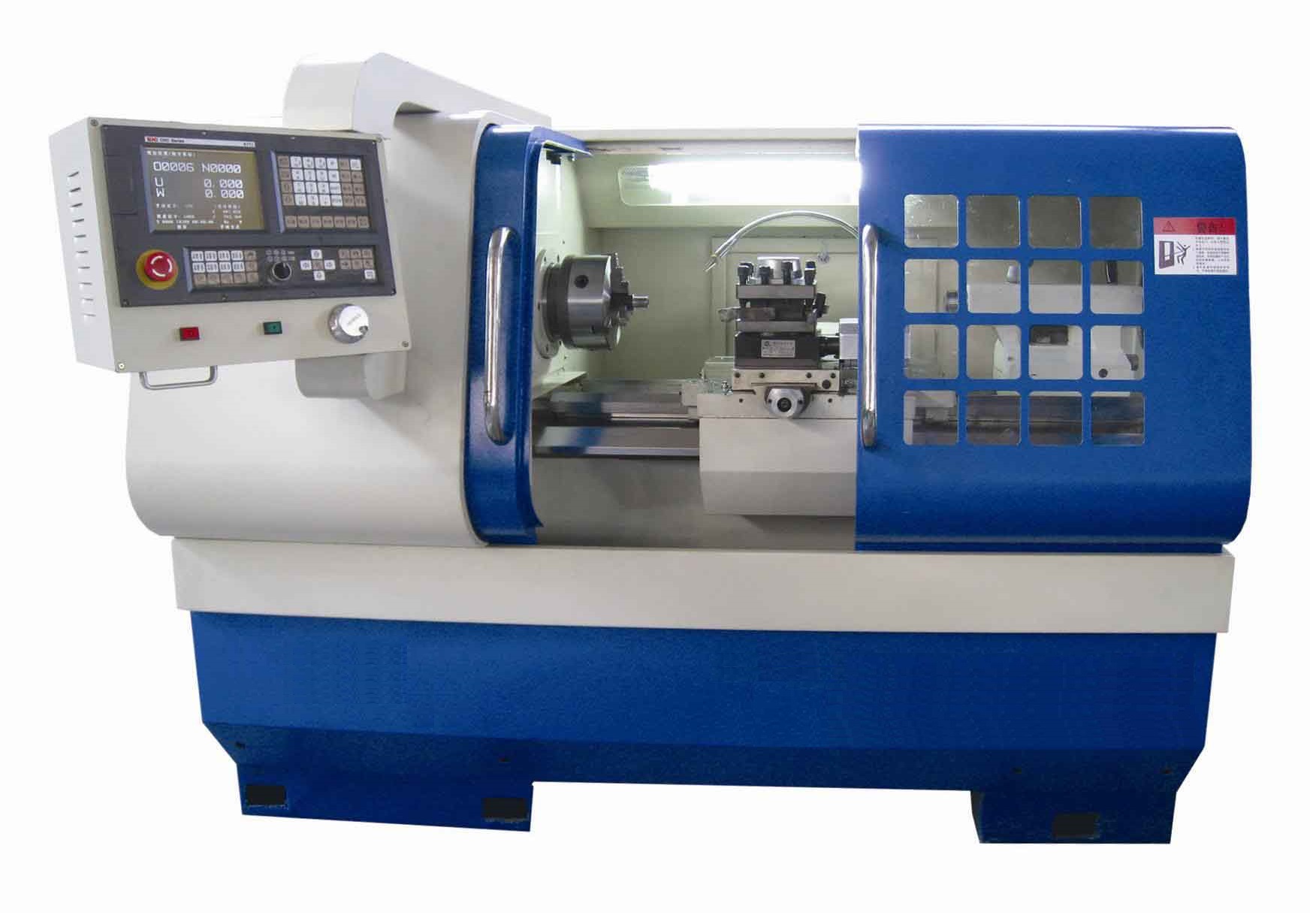

CNC Turning Machine 73 unit
Machine Capabilities:
  • Machine travel range: 480 mm
  • Diameter range from 4 mm to 200 mm with spindle RPM4,000
  • Repeatability ±0.004 mm
  • Positioning ±0.003 mm
  • Spindle run-out 0.003 mm
  • Spindle motor 20 hp

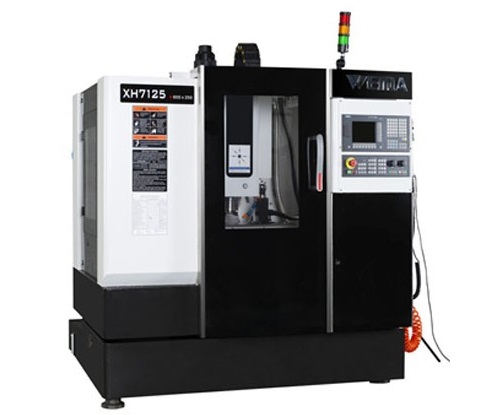

    • 5 Axis CNC Milling Machine 14 unit
    Machine Capabilities:
  • Resolution (deg) 0.001
  • Indexing accuracy (sec) 15″
  • Repeatability (sec) 6″
  • Tilting angle range (deg) -30/+120
  • Allowable cutting torque (μm) 370

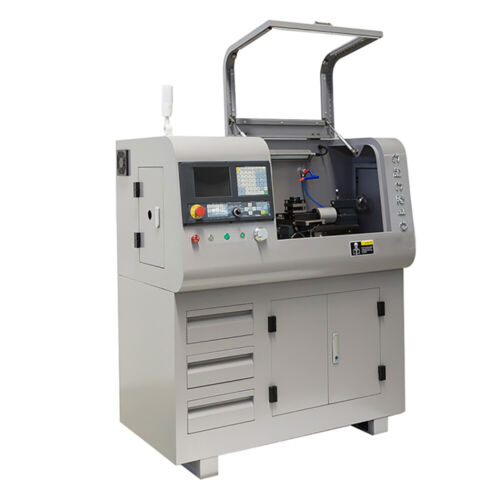

    • CNC Auto Lathe 8 unit
    Machine Capabilities:
  • Max. Swing Over Bed : 300 mm
  • Max. Swing Over Slide : 100 mm
  • Spindle Taper Hole : Ф48 mm
  • Maximum Diameter of Bar : Ф40 mm
  • Spindle Motor Maximum Speed : 3000 r/min

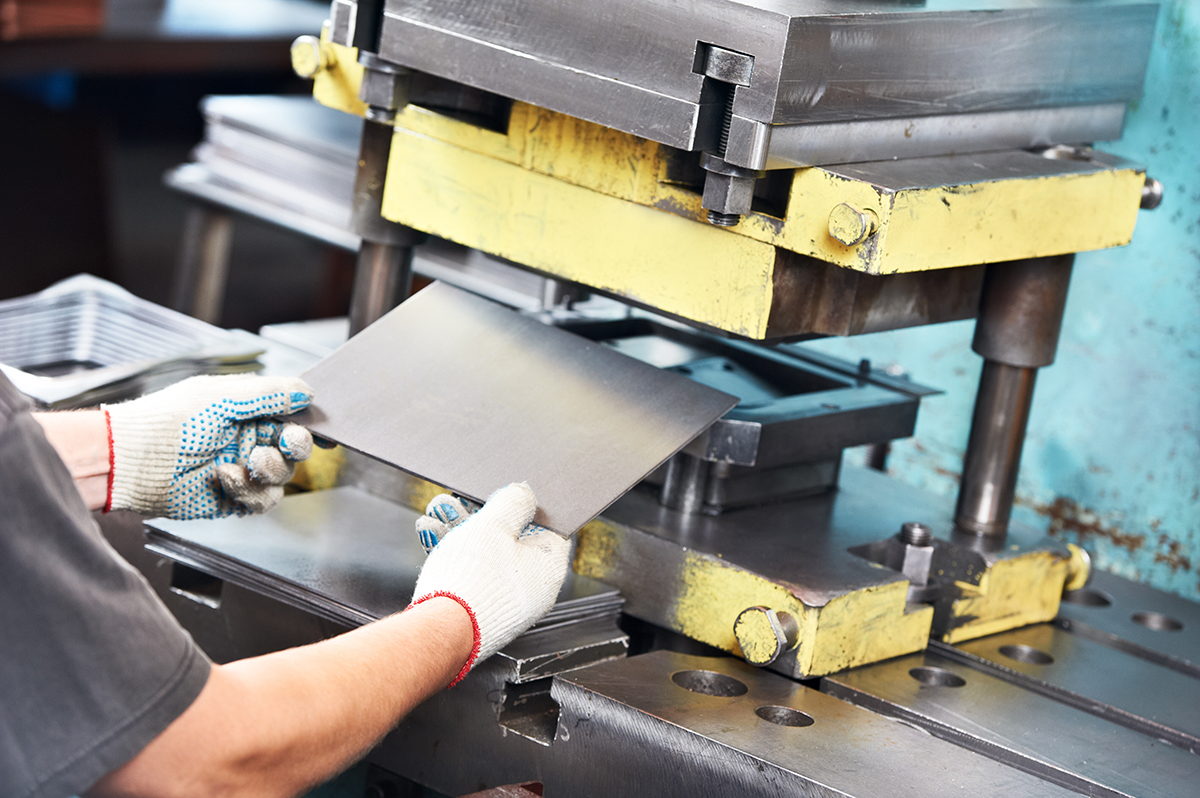

    • Stamping Machine 5 unit
    Machine Capabilities:
  • Precision stamping, punching, blanking, embossing, sheet metal forming, etc
  • Highly customized to your requirements

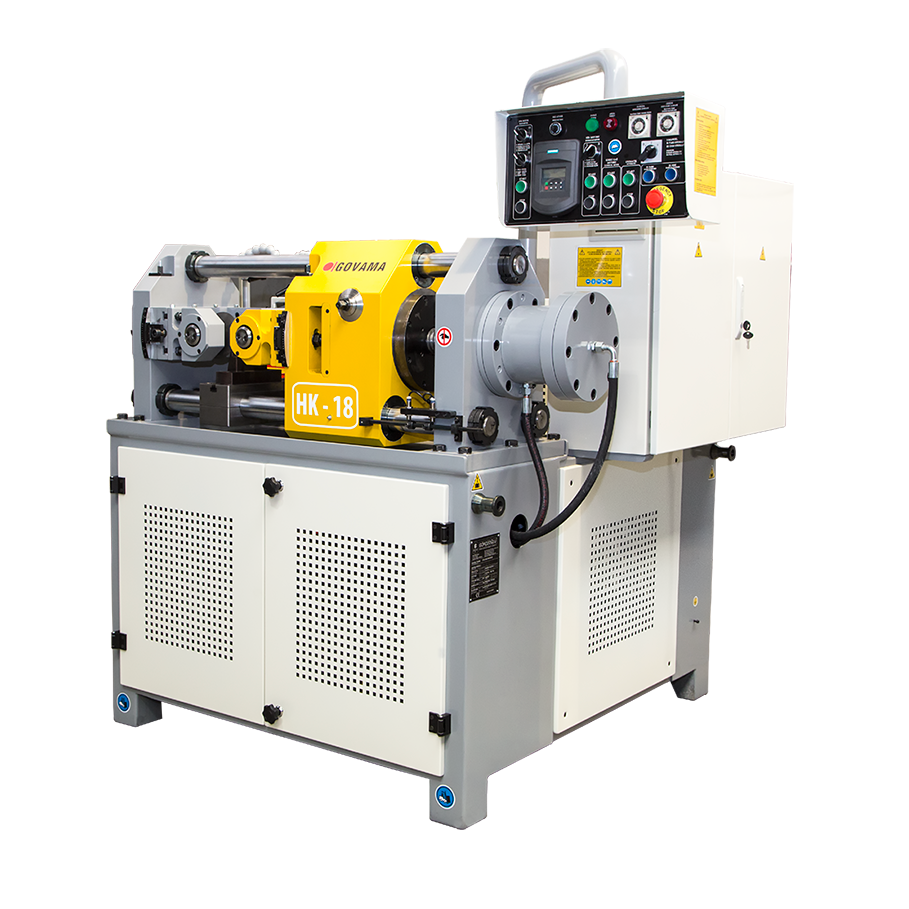

    • Thread Rolling Machine 3 unit
    Machine Capabilities:
  • Speed Range (RPM) 99-146-196-247-356-449-604
  • Min.-Max. Die Dia. (mm) Ø130 - Ø190
  • Die Spindle Dia. (mm) Ø54
  • Max. Die Length (mm) 160
  • Workpiece Dia. (mm) Ø3 - Ø20
  • Max. Pitch (mm) 2
  • Swivel Angle ±8°
